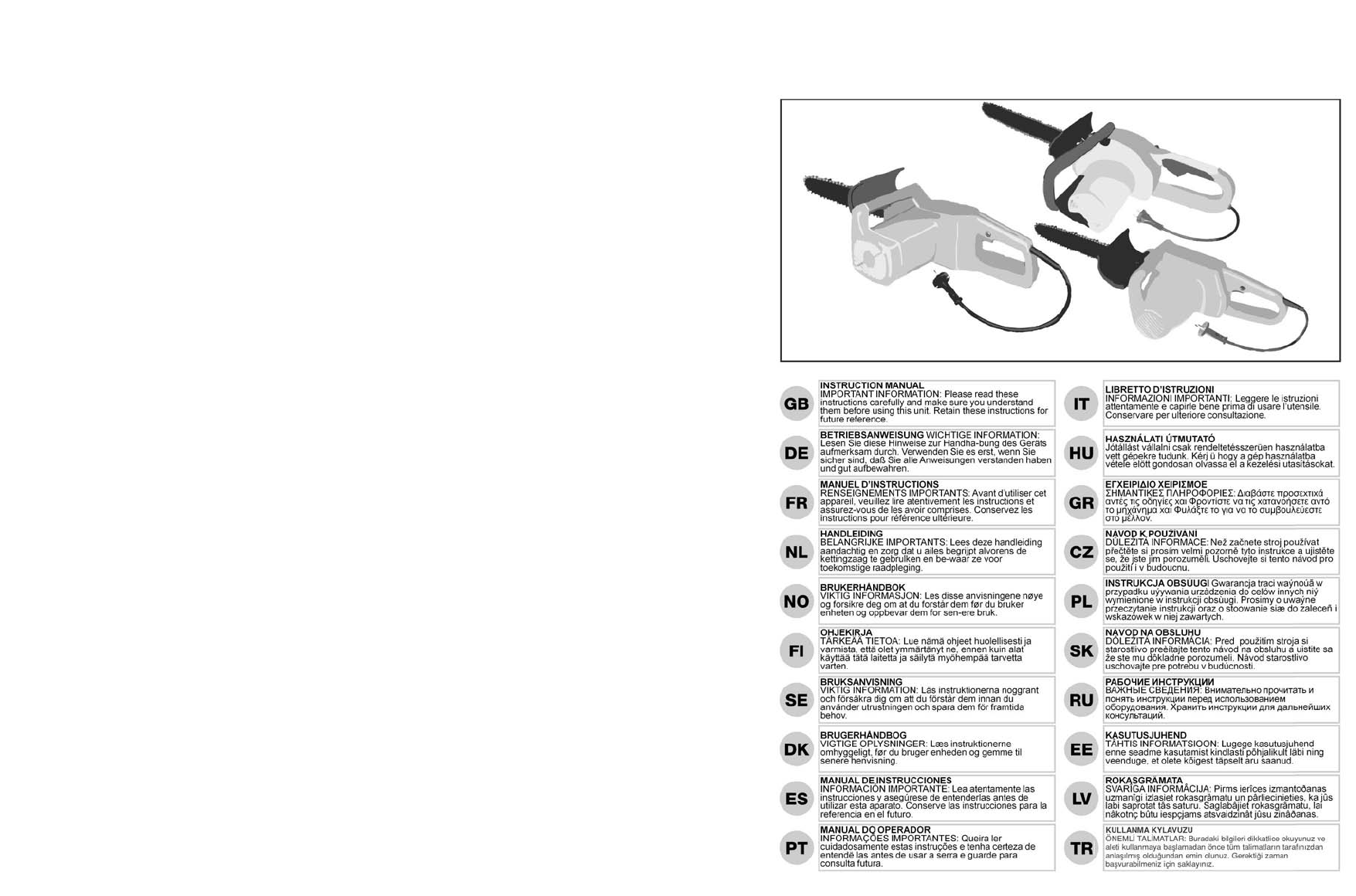

McCulloch Electramac EL35 Instruction Manual

PN. 249498 REV. 05 (01/06)Husqvarna Outdoor Products Italia SpAVia Como 7223868 Valmadrera (Lecco)ITALIAPhone + 39 0341 203111 - Fax +39 0341 581671

ENGLISH – 7 case do not tighten the chain immediately after use, but wait until it cools down.In cases where the loosened cha

ENGLISH - 8 Check that the chain is sharpened correctly (See below), in good working condition and that the tension is correct. If

ENGLISH – 9 - At the end of each cutting operation the user will notice a considerable change in the strength necessary for c

ENGLISH - 10 and lower cut. The meeting point between the two sides of the notch is called “directional cut line” This line must be

ENGLISH – 11 M. TROUBLESHOOTING TABLE Motor does not start Motor turns with difficulty or loses powerThe machine starts but d

N. DECLARATION OF CONFORMITY The undersigned, authorized by H.O.P.I., declares that the following products model: type ES15, ES 15/1, ES 15/2, ES16,

A. GENERAL DESCRIPTION 1) Rear handle 2) Rear hand guard 3) Front handle 4) Front hand guard/chain brake lever 5) Chain tensioner knob/screw 6)

ENGLISH - 2 B. SAFETY PRECAUTIONS MEANING OF SYMBOLS Warning! Read the instruction manual carefully Protective boots Protec

ENGLISH – 3 reference number of the corresponding component to draw the reader’s attention to the main safety procedure linke

ENGLISH - 4 6. Health precautions – Chemical agents. Avoid all chain oil contact with skin and eyes.7. Health precautions - Electri

ENGLISH – 5 sure that the cable/ extension cord is kept behind the user, controlling that it does not create a source of dang

ENGLISH - 6 The chain brake can be activated in two modes: the first using the left wrist by pushing forwards, or when it comes int
